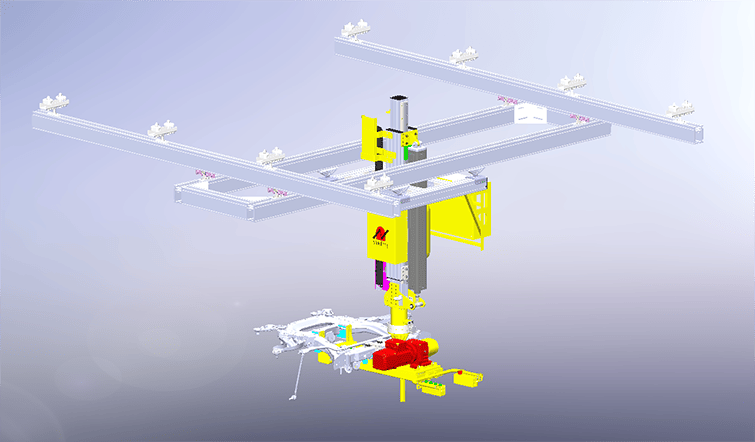

The T-type power manipulator has the most significant feature of a rigid guide structure. It can be used with different lifting power mechanisms (low-friction cylinders, pneumatic balancers, electric servos, electric hoists, etc.) to achieve up and down movement (floating) of the workpiece. It can be equipped with non-standard custom fixtures to achieve various handling and assembly postures of the workpiece in 3D space. When in use, it is combined with KBK tracks to increase the range of motion. It has strong structural rigidity, anti-torsion and anti-eccentricity, and is more applicable.

? Rigid structure: Guide rod structure ensures stable movement of workpiece in Z direction, anti-eccentricity, avoidance and greater stability;

? Pressure loss protection: Workpiece will not fall if air is suddenly cut off

? Misoperation protection: When there is no support under the workpiece in the load state, releasing the button is invalid

? Expandability: Used with KBK track, it has stronger expandability

? Diversity: It can be used with different lifting hosts as needed, and it has stronger industry versatility
